K17

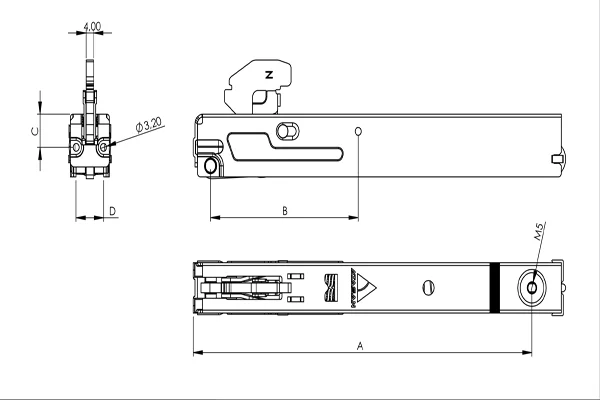

Technical Drawing

Atasan designs hinges that offer comfort to consumers. With a vision that allows the production of cost-efficient options, the company is able to adapt its innovative technologies to any desired weight.

Technical Specifications

Door Weight	2.5 - 12 kg
Life Cycle Test	20.000 Cycles
Maximum distance from pivot point to centre of gravity	230 mm
Opening Angle	85 °
Operation Temperature	115 °C
Maximum supported static load	25 kg
