K20

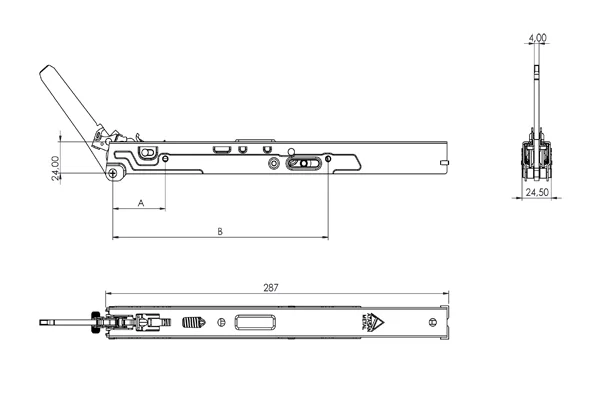

Technical Drawing

The body of new generation hinges is now on the frame. With this model which is designed from solid glass and in which the “soft close” mechanism is used, Atasan offers an option that combines practicality with a stylish look.

Technical Specifications

Door Weight	2.5 - 10 kg
Life Cycle Test	20.000 Cycles
Maximum distance from pivot point to centre of gravity	230 mm
Opening Angle	85 °
Operation Temperature	115 °C
Maximum supported static load	25 kg
