K23 Long

K23 Long
K23 Long

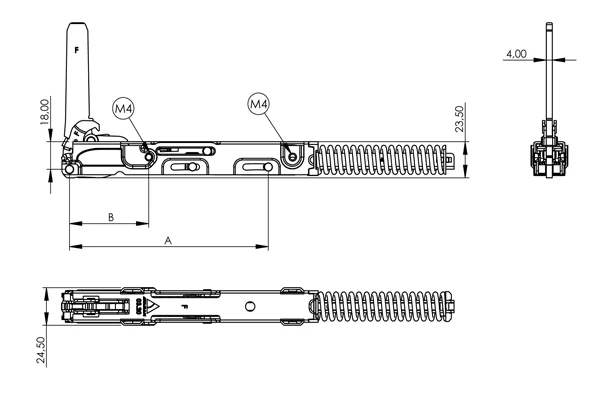

Technical Drawing

K23 Long Teknik Çizim

This mechanism provides maximum comfort by offering soft opening and closing together with a single damper group.

Technical Specifications

Door Weight 2.5 - 12 kg
Life Cycle Test 20.000 Cycles
Maximum distance from pivot point to centre of gravity 230 mm
Opening Angle 85 °
Operation Temperature 115 °C
Maximum supported static load 25 kg

Atasan Inc. (USA) — established in late 2024 — imports and distributes high-precision components from Atasan Metal Sanayi ve Ticaret A.S. (Turkey, est. 1995), serving OEMs worldwide, including GE Appliances and BSH Home Appliances.
