Mod94-Short

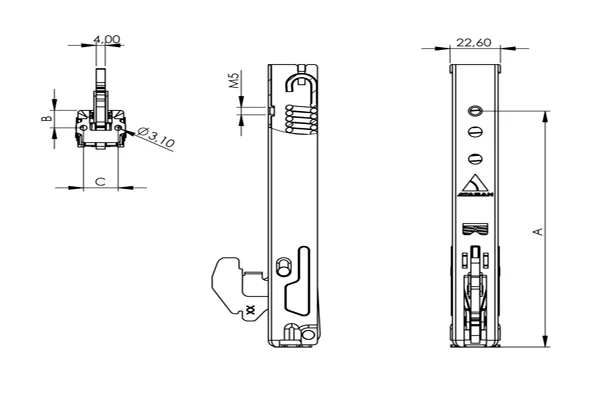

Technical Drawing

The body placed on the door by Atasan challenges to high expenses often paired by innovative designs. This model is manufactured in a cost efficient manner for classical products.

Technical Specifications

Door Weight	2.5 - 12 kg
Life Cycle Test	20.000 Cycles
Maximum distance from pivot point to centre of gravity	230 mm
Opening Angle	86 °
Operation Temperature	115 °C
Maximum supported static load	25 kg
